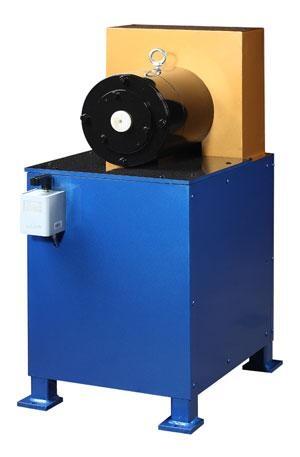

全自動銅管縮口機

TRM Series Automatic Copper Tube Shrinking Machine

整機特性：

1. 銅管縮口機主要是針對銅鋁管對焊機研發的縮口設備，可以把銅管端口縮小，插入鋁管再進行焊接。也可以配套用于

     毛細管的焊接縮口設備；

2. 該款縮口機主要用于縮小管材端口，速度快，經過高速旋轉及拍打使其內、外徑尺寸精準，外表光滑美觀；

3. 機器體積小、重量輕、操作簡單、使用方便；

4. 可根據不同尺寸要求，模具可任意更換。

技術參數

1． 電源電壓：三相380VAC、50/60Hz

2． 電機功率：2.2～7.5KW

3． 縮管直徑：Φ4～Φ35mm

Main Features

1. Specially designed to reduce mouth of copper tube for Copper Tube and Aluminum Tube Butt Welding machine,It shrinks mouth of copper tube to insert to Aluminum Tube,then finish welding.Also can be used to reduce mouth of capillary tube;

2. Mainly used to reduce the mouth of tubes.By high-speed rotating and flapping,the inner and outside diameter of tubes after reducing are very quite accurate,appearance is smooth and beautiful;

3. Small Volume,light weight,easy operation and good use;

4. Shrinking Mold can be replaced in accordance with different diameter requirements.

Main Technical Parameters

1、Input Voltage:380~~480VAC 、50/60Hz

2、Motor Power: 2.2~~7.5KW.(Different size of tube, need different power!)

3、Tube Diameter:Φ4~Φ35mm
